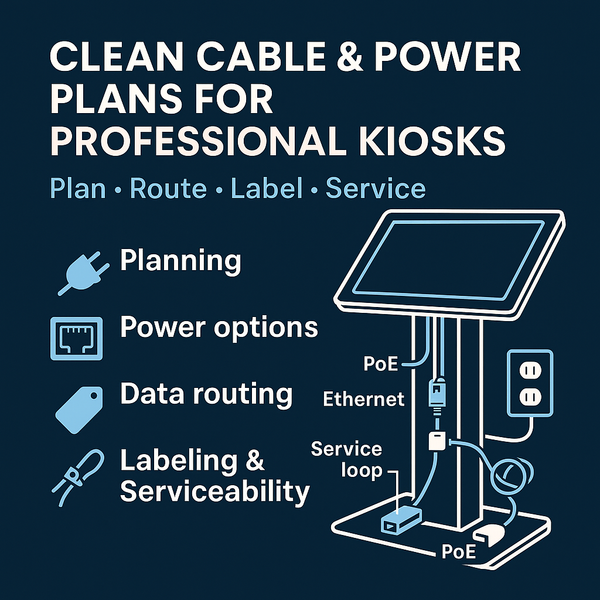

Clean Cable and Power Plans for Professional Kiosks

Planning

Create a wiring diagram before the first drill hole. Identify power outlets, network drops, and device locations. Confirm VESA patterns and stand or wall spacing. Leave slack for service and strain relief.

Power Options

Use a dedicated circuit for clusters of displays. For countertop devices, a recessed outlet behind the unit reduces visible cords. Where compatible, Power over Ethernet adapters simplify single cable runs. Always confirm rated wattage and heat dissipation in the enclosure.

Data Routing

For Ethernet, route through internal channels on stands and mounts. For Wi Fi, keep access points within line of sight where possible. Avoid tight turns that stress HDMI and USB cables. Use locking HDMI where vibration is expected.

Labeling and Serviceability

Label both ends of every cable. Use color coded tags for power, video, and touch. Provide a small service loop so techs can pull a device forward without disconnecting everything. Document final photos and store them with the install record.

Common Failure Points

Loose HDMI connections, unpowered USB hubs, and kinked cables cause intermittent touch loss. Mounting arms that move can slowly loosen connections. Add periodic checks to your maintenance plan.

Final Thoughts

Neat wiring improves reliability and brand perception. Design with service in mind so a field swap takes minutes instead of hours.
