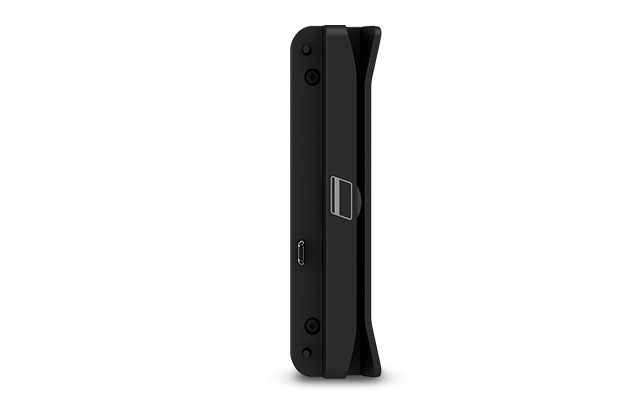

Elo Edge Magnetic Stripe Reader

SKU: E001002
$199.95
Availability: Ships today
412 in stock
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Encryptable magnetic stripe reader for Elo Edge Connect. Bi-directional swipe, reads 2 tracks with support for 3. USB-powered via micro-USB. Mounts directly to compatible Elo computers and monitors. Built for continuous retail use. Includes MSR, 2 mounting screws, and QIG. 2-year warranty.


Technical specifications

Detailed technical information and specifications for this product.

Model Elo Magnetic Stripe Reader
SKU E001002
Swipe Speed 4–60 ips (10.1–152.4 cm/s)
Tracks 2 non-encrypted, support for 3
Interface and Power Micro-USB, 5 V, ~0.5 W
Emulation HID or Keyboard
Fromats ISO 7811/7810, AAMVA, CA DMV, ANSI
OS Support Windows 7/8.1, Ubuntu LTS, Android 4.4.2
Mounting Elo Edge Connect, direct-mount to select Elo displays
Warranty and In the box 2-year limited (manufacturer). Magnetic stripe reader, 2 mounting screws, Quick Installation Guide (QIG).
