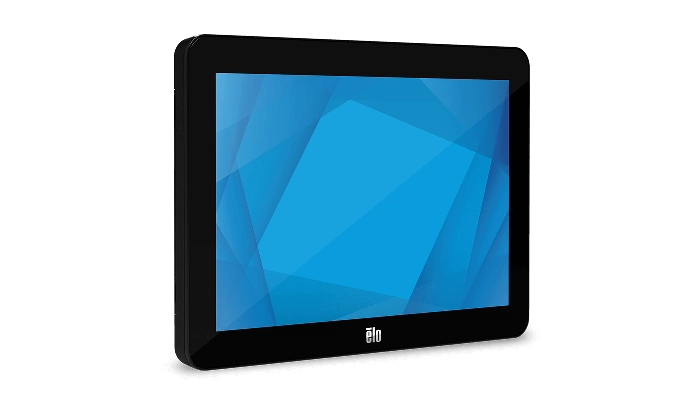

Elo 1002L – 10.1″ HD Touchmonitor (With Stand)
SKU: E155834
$664.99
Availability:
Ships today
692 in stock
The Elo 1002L 10.1-inch touchscreen monitor delivers professional-grade performance with Elo’s TouchPro® PCAP technology and edge-to-edge glass, enabling up to 10 simultaneous touches. Designed for commercial environments, it features dual integrated speakers and multiple mounting options for maximum flexibility — including stand, wall, and pole mounts.
With USB Type-C connectivity providing touch, video, and power through a single cable, along with HDMI and VGA ports, the 1002L ensures easy integration into existing systems. Its slim form factor, energy efficiency, and durable construction make it ideal for POS, self-service, and customer-facing applications.
Technical specifications
Detailed technical information and specifications for this product.
Display
10.1" HD (1280 × 800) LED display, 16:10 aspect ratio.
350 cd/m² brightness • 800:1 contrast ratio.
10 simultaneous touches PCAP technology (finger, glove, stylus compatible)
Anti-glare, zero-bezel glass
Connectivity
1 × HDMI 1.4.
1 × VGA.
1 × USB Type-C (video, power, and touch).
1 × USB Type-B (touch).
3.5 mm audio in/out.
DC-in power jack.
Audio
Dual integrated 1 W stereo speakers
| Model | Elo 1002L – 10.1″ HD Touchscreen Monitor |
| SKU | E155834 |
| Power | Input: 100–240 VAC, 50/60 Hz via power adapter. Typical power consumption: 12 W |
| Mounting | 75 × 75 mm VESA pattern, Compatible with stand, wall, or pole mounts |
| Warranty | 3-year limited manufacturer warranty |
| Operating Conditions | Operating temperature: 0 °C to 40 °C (32 °F to 104 °F). Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F). Humidity: 20%–80% non-condensing |
| Certifications | UL, CE, FCC Class B, ICES-003, VCCI, CB, CCC, RCM, RoHS, WEEE |
| In the box | Touch monitor • HDMI cable • USB Type-A to Type-C cable • Power brick • NA and EU power cables • Quick Install Guide • EET Label • Cable clamps × 2 • Tie wraps × 2 • M3 screws × 5 |
| Audio | 2 × 2 W stereo speakers |
