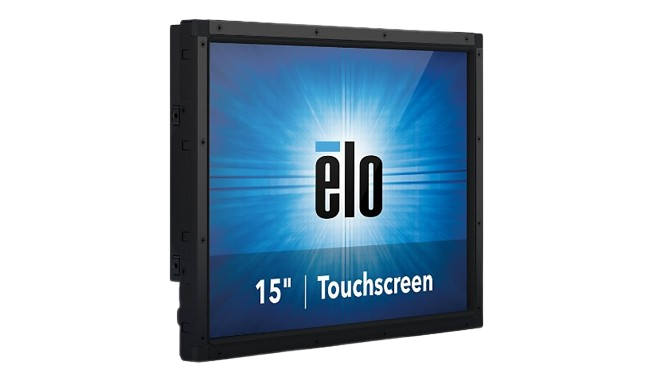

Elo 1590L - 15" Open-Frame LED Touchmonitor
SKU: E326154
$929.95
Availability:
Ships today
146 in stock
The Elo 1590L is a 15-inch open-frame LCD touch display designed for embedded and kiosk integrations where a slim profile, narrow borders, and reliable operation are required. It features an energy-saving LED backlight, anti-glare surface, and Elo’s proven AccuTouch 5-wire resistive technology for accurate single-touch input in retail self-service, casino/amusement, and industrial automation environments.
Technical specifications
Detailed technical information and specifications for this product.
Display
15" class LCD, 1024 × 768 @ 75 Hz, LED backlight, ~250 cd/m², 700:1 contrast, ~16 ms response, anti-glare; AccuTouch 5-wire resistive (single-touch).
Connectivity
HDMI, VGA, DisplayPort (video); USB-A → USB-B (touch); RS-232 touch controller; RJ45 OSD remote; DC-in power jack.
Audio
None (no integrated speakers)
| Model | Elo 1590L - 15" Open-Frame Touchmonitor (Rev B) - AccuTouch |
| SKU | E326154 |
| Power | 12 V DC monitor input (power brick not included). |
| Mounting | Open-frame mounting; flush-mount brackets (zero-bezel) or “L” side-mount brackets (bezeled AccuTouch/SecureTouch/IntelliTouch models) with screws included. |
| Warranty | 3-year limited (manufacturer) |
| In the box | HDMI cable; VGA cable; RJ45 OSD remote; USB touch cable (USB-A ↔ USB-B); User Manual CD; Quick Install Guide; Flush-mount brackets w/ screws (for zero-bezel models); “L” side-mount brackets w/ screws (for bezeled IntelliTouch/AccuTouch/SecureTouch models); EEI label; Japan Class-B TM info sheet. |
