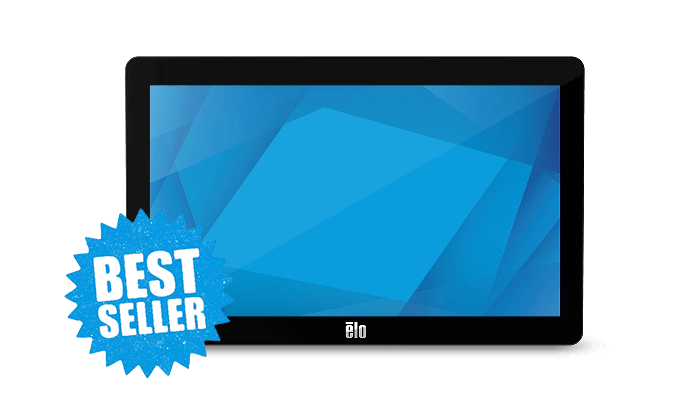

Elo 2202L – 22″ Full HD Touchmonitor
SKU: E126096
$799.95
Availability:
Ships today
6 in stock
Commercial-grade 21.5″ (22″ class) PCAP touchscreen with edge-to-edge glass and 10-touch accuracy. Full-HD panel, integrated stereo speakers, and flexible I/O make the 2202L a clean fit for POS, self-service, wayfinding, and interactive signage. HDMI and VGA handle video, while USB carries touch. Ships ready for 24/7 retail use with a 3-year warranty.
Technical specifications
Detailed technical information and specifications for this product.
Display
21.5″ (22″ class) Full HD (1920 × 1080) LED display, 16:9 aspect ratio.
Brightness: 250 cd/m² (typical), Contrast ratio: 1000:1.
10 simultaneous touches PCAP technology (finger, glove, stylus compatible) Anti-glare, zero-bezel glass
Connectivity
1 × HDMI 1.4.
1 × VGA.
1 × USB Type-B (touch).
3.5 mm audio in/out.
DC-in power jack.
Audio
Dual integrated 2 W stereo speakers
| Model | Elo 2202L – 21.5″ Full HD PCAP Touchscreen Monitor (No Stand) |
| SKU | E126096 |
| Power | Input: 100–240 VAC, 50/60 Hz via power adapter. Output: 12 VDC. Typical power consumption: 18 W (maximum) |
| Mounting | VESA 100 × 100 mm pattern. Compatible with wall, pole, or stand mounting options |
| Warranty | 3-year limited manufacturer warranty |
| Operating Conditions | Operating temperature: 0 °C to 40 °C (32 °F to 104 °F). Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F). Humidity: 20%–80% non-condensing |
| Certifications | UL, CE, FCC Class B, ICES-003, CB, VCCI, CCC, RCM, RoHS, WEEE |
| In the box | Touch monitor • Quick Install Guide • VGA cable • HDMI cable • USB Type-A to Type-C cable • Power brick • NA and EU power cables • Audio cable • 3× Tie wraps • 4× screws • EET label |
