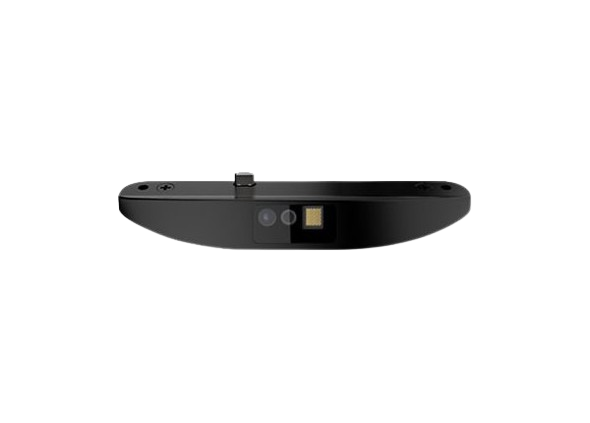

Elo Edge Connect 2D Barcode Scanner (4720-Performance) USB

SKU: E384627
$529.95
Availability: Ships today
641 in stock
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Hands-free 2D barcode scanner designed for Elo Edge Connect. Built on the Zebra SE4720 imager, it captures 1D and 2D codes on paper or screens with a 1280×800 sensor, white LED illumination, and a green aimer. Typical working range extends up to ~30 in (~76 cm), making it suitable for customer-facing and self-service stations. The module mounts cleanly to compatible Elo displays through Edge Connect and is powered over USB (5 VDC, bus-powered). Compatible with Elo I-Series 2.0/3.0/4.0, EloPOS, 02-Series Touch Monitors, and Elo large-format displays. Includes scanner, mounting hardware, and Quick Installation Guide. 2-year limited manufacturer warranty.


Technical specifications

Detailed technical information and specifications for this product.

Model Elo Edge Connect 2D Barcode Scanner
SKU E384627
Engine Zebra SE4720, 2D imager.
Imaging 1280 × 800 px sensor, white LED illumination, green aimer.
Read Capability Reads 1D and 2D barcodes on paper or screens.
Working Distance Up to ~30 in (~76 cm) depending on symbology and conditions.
Interface and Power USB, 5 VDC, bus-powered (Edge Connect).
Compatibility Elo I-Series 2.0/3.0/4.0, EloPOS, 02-Series Touch Monitors, Large-Format Displays via Edge Connect
In the box Scanner, mounting hardware, Quick Installation Guide.
Warranty 2-year limited (manufacturer).
