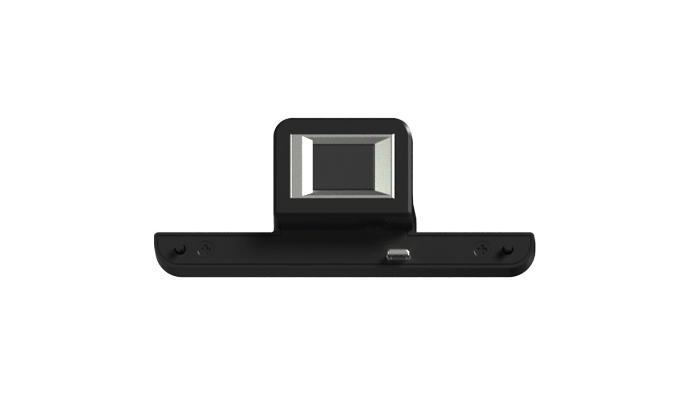

Elo Edge Connect Fingerprint Reader
SKU: E134286
$344.99
Availability:
Item Backordered
Out of stock, this item will ship once it is in stock.
Elo Edge Connect Fingerprint Reader (E134286) adds secure biometric login to compatible Elo touch displays through Edge Connect. It delivers fast captures for POS, kiosks, and enterprise access with a 508 dpi sensor, 12.8 × 18.0 mm capture area, 256 × 360 pixel output, and 8-bit grayscale images. Powered by micro-USB 5 V, it mounts cleanly to I-Series 2.0/3.0/4.0, EloPOS, 02-Series monitors, and large format displays. Built for continuous commercial use with durability up to four million touches, it streamlines user authentication while keeping the footprint minimal. Includes scanner, two mounting screws, two mylar screw covers, and QIG. Standard 2-year warranty.
Technical specifications
Detailed technical information and specifications for this product.
| Model | Elo Edge Connect Fingerprint Reader |
| SKU | E134286 |
| Power | Micro-USB, 5 VDC |
| Sensor | Capacitive, 508 dpi, 12.8 × 18.0 mm |
| Image | 256 × 360 px, 8-bit grayscale |
| Durability | Up to 4,000,000 touches |
| Mounting | Connect I-Series 2.0/3.0/4.0, EloPOS, 02-Series Touch Monitors, Large-Format Displays (Edge Connect) |
| In the box | Fingerprint scanner, 2 mounting screws, 2 mylar screw covers, QIG |
| Warranty | 2-year limited (manufacturer) |
