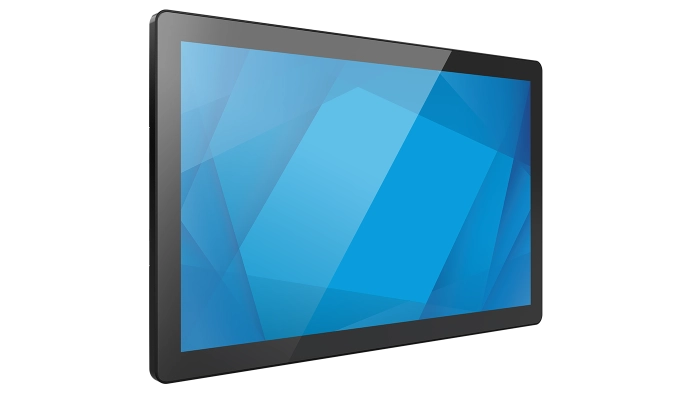

Title: Elo I-Series 3 - Standard - 22″ Touchcomputer
SKU: E606903
$2,339.99
Availability:
Ships today
166 in stock
22″ commercial all-in-one built on Intel 12th-gen platform. 10-touch PCAP, edge-to-edge glass, Wi-Fi 6/BT 5.3, Gigabit LAN, USB-C with DP alt-mode, and Elo Edge Connect ports. This specific SKU is Celeron 7305L, Windows 10 IoT Enterprise LTSC, 8GB DDR5, 128GB NVMe, “clear” glass, without stand.
Technical specifications
Detailed technical information and specifications for this product.
Processor
Intel Celeron 7305L, 8MB cache, up to 1.10 GHz.
Memory
8 GB DDR5-4800 SO-DIMM installed (1 of 2 slots; up to 64 GB max).
Storage
128 GB M.2 NVMe SSD (80 TBW).
Connectivity
× RJ45 Gigabit LAN, 4× USB-A 3.0, 4× Micro-USB 2.0 for Elo Edge Connect peripherals, 1× RJ50 powered serial, 1× full-function USB-C (up to 27 W power, USB 3.0, DisplayPort alt-mode, additional video out), 1× 3.5 mm audio. Wi-Fi 6/6E (802.11a/b/g/n/ac/ax on 2.4/5/6 GHz), Bluetooth 5.3.
Software
Windows 10 IoT Enterprise LTSC 64-bit
Dimensions
525.8 mm (W) × 321.1 mm (H) × 39.6 mm (D); 6.0 kg.
| Model | Elo I-Series 3 - 22″ - Celeron - 8 GB / 128 GB - Clear - No Stand. |
| SKU | E606903 |
| Power | External 24 V DC power brick; AC input 100–240 V, 50–60 Hz; max 180 W. Typical power (Celeron) 39 W; sleep <5 W; off <0.5 W. |
| Display | 21.5″ IPS LCD (active matrix TFT, LED backlight), 16:9, 1920×1080 @60 Hz, 10-touch TouchPro PCAP, edge-to-edge glass; brightness 250 nits panel / 212.5 nits with touch; contrast 1000:1; 178°/178° viewing; 14 ms response. Active area 476.1×267.8 mm. |
| Warranty | 3-year limited (manufacturer) |
| Audio | 2 × 1.5 W speakers |
| In the box | I-Series unit, NA power cord, EU power cord, 180 W power adapter, RJ50-to-DB9 cable, Quick Installation Guide, cable tie, VESA mounting screw. |
